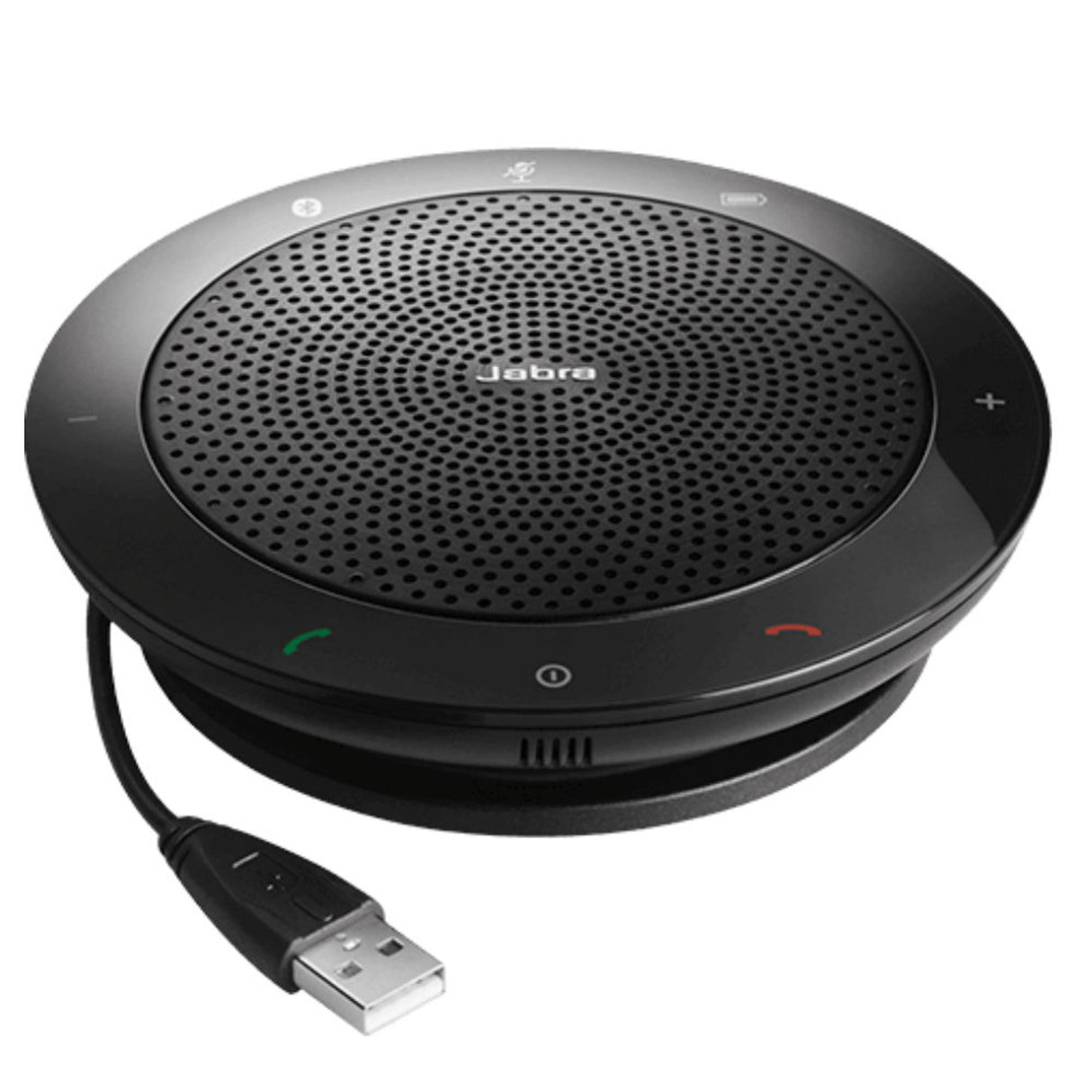

Jabra Speak 510

• Peak Output Power: 10 watt
• Microphone Type: Omni-directional
• Signal to noise ratio (SNR): +60dB
• Speaker sensitivity: Output sensitivity in Max volume: 0 dB Pa/Vd
• Certifications: Bluetooth 3.0, CE, FCC, RoHS, REACH

• Bluetooth® Standard: Bluetooth® 3.0
• Bluetooth Range: Up to 30 m
• Supported Bluetooth® Profiles: A2DP (v1.2), Hands-free Profile (v1.6), Headset Profile (v1.2), AGHFP (v1.6)
• PC USB Bluetooth dongle (Jabra Link 380): USB BT audio device/HID dongle. Bluetooth® 3.0)

• Talk-Time: Up to 15 hours
• Standby Time: Over 200 days with Automatic power off feature
• Charging Time: Approximately 2 hours

• Speakerphone Weight: 195 g / 6,88 oz

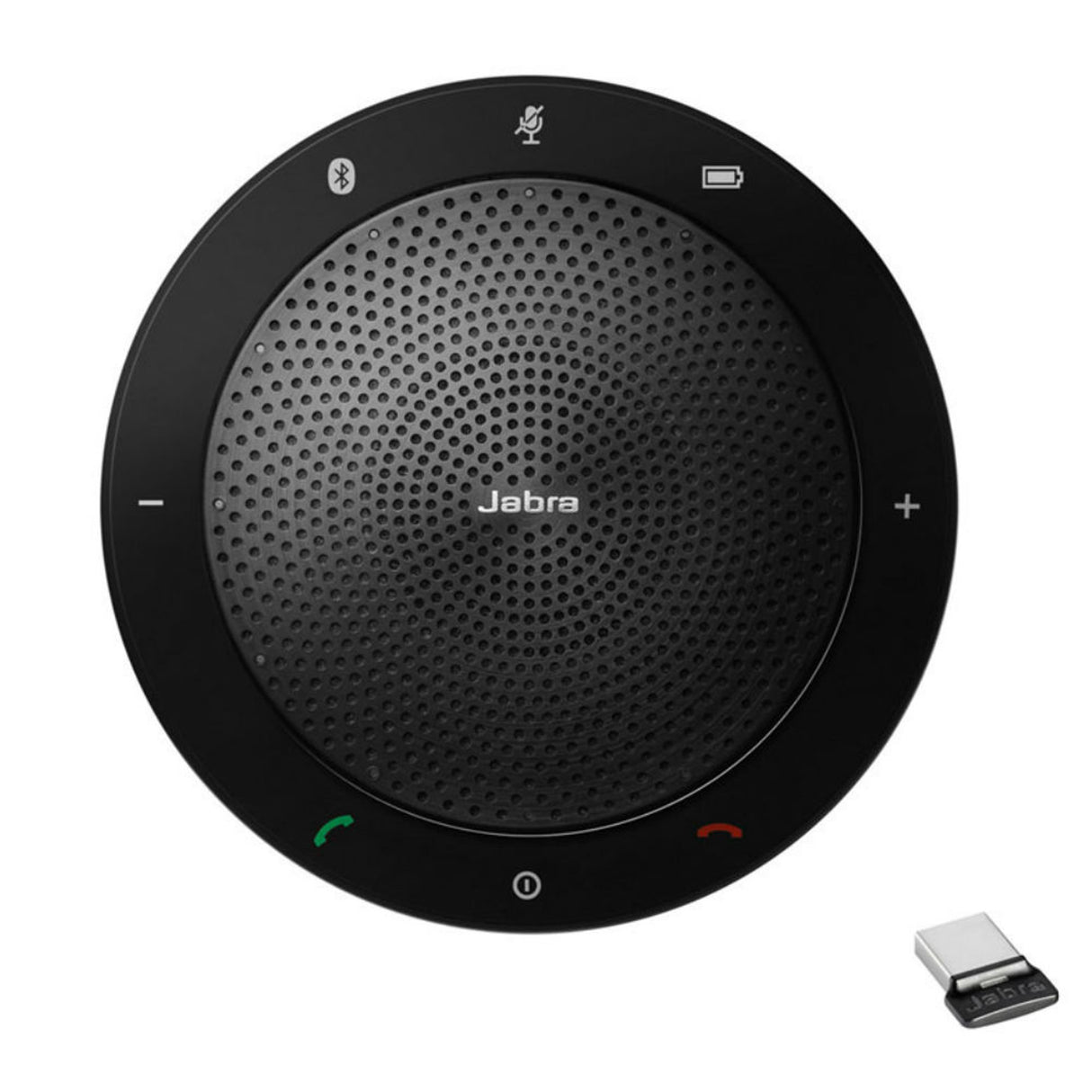

• What's in the Box: Jabra Speak 510 – Pouch – Jabra Link 380 (PC USB Bluetooth dongle comes with Jabra Speak 510+) – Quick Start Guide – Warranty and Warning leaflets

Prerequisites

• Jabra Speak 510, version D* or later
• Jabra Speak 510+, version F* or later
• Jabra Direct Version 3.x or later

To use the Smart button to activate the voice assistant on your smartphone (such as Siri, Google Assistant, Cortana), or to speed dial a phone number using your softphone, install Jabra Direct. Then in the Smart button settings, select the function.

To pair the Jabra Speak 510 with a Bluetooth headset, follow these steps.

1. Plug the Jabra Speak 510 into an available USB port on your computer.
2. Put the Bluetooth headset into pairing mode (refer to the headset manual for instructions).
3. Press and hold (8 seconds) the Bluetooth button on the Jabra Speak 510 until the Bluetooth light flashes blue and then flashes green.
4. Release the button when the speakerphone announces “Connect to headset”.
5. When the LED turns solid blue, pairing is complete.

To pair the Jabra Speak 510 with your smartphone, tablet, or other handheld mobile device, follow these steps.

1. Turn on the Bluetooth setting on your mobile device.
2. To enter pairing mode, press and hold (2 seconds) the Bluetooth button on the speakerphone.
3. To pair, go to the Bluetooth menu on your mobile device and select the Jabra Speak 510 from the list of available devices.
   Enter “0000” (four zeros) if you are asked for a pin code.
   To disconnect or reconnect the speakerphone, press the Bluetooth button.

Note
If pairing is not successful, try the pairing steps again, or try pairing with a different Bluetooth device.

The Jabra Speak 510 does not have the option to perform a complete reset.

A Jabra Bluetooth device is fully backward compatible with other Bluetooth devices that have Bluetooth version 2.0 or later, with Headset Profile (HSP) version 1.2 or later and Hands Free Profile (HFP) version 1.5 or later.

Note:

• Bluetooth version 2.0 was released in 2004.
• HSP version 1.2 was released in 2008.
• HFP version 1.5 was released in 2005.
