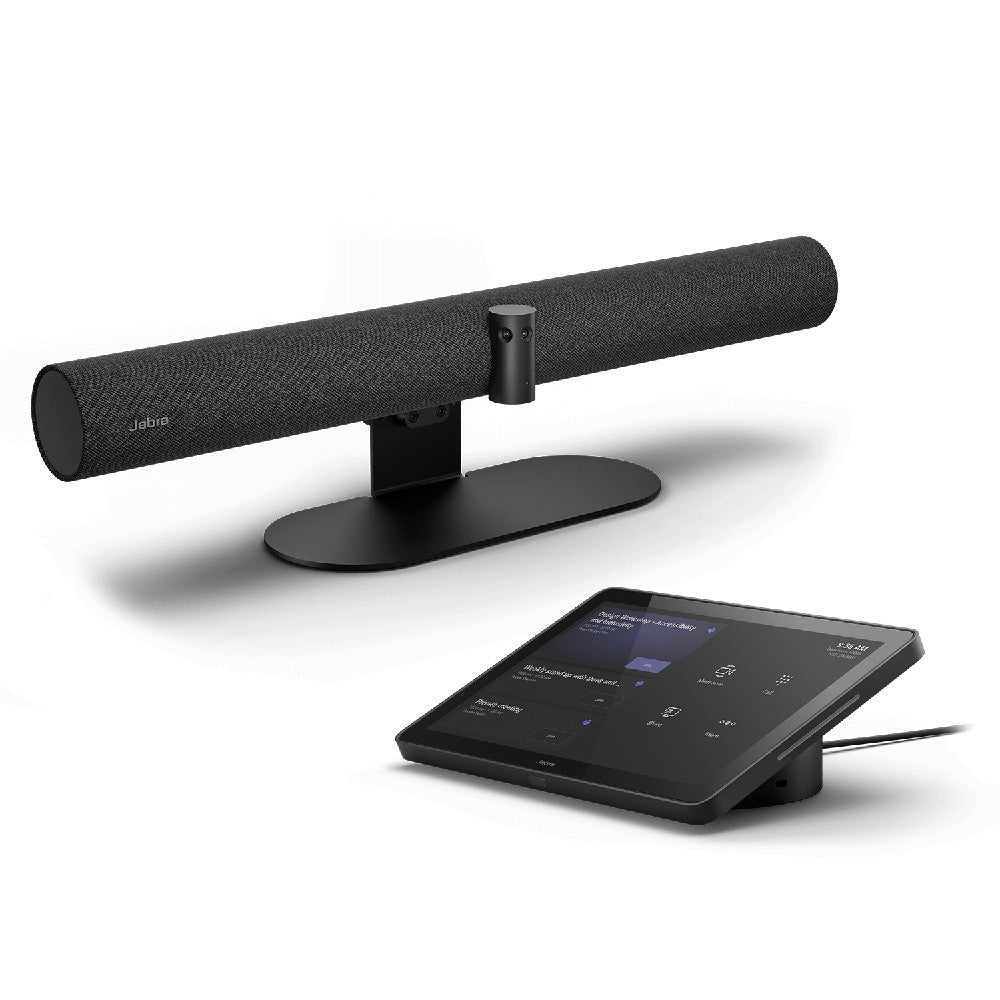

PanaCast Video Bar System
PanaCast Video Bar System - Other Major Platforms is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Self-Collect at Dacon Networks
- FREE Delivery for orders $200 and above (within mainland Singapore)
- Additional $20 delivery charge (before GST) for orders $199 and below (within mainland Singapore)
Description
Description
Why you'll love Jabra PanaCast 50Ā Video Bar System
- World-class audio with full duplex and powerful stereo speakers
- Unique 180Ā°Ā full room coverage in high-definition Panoramic-4K

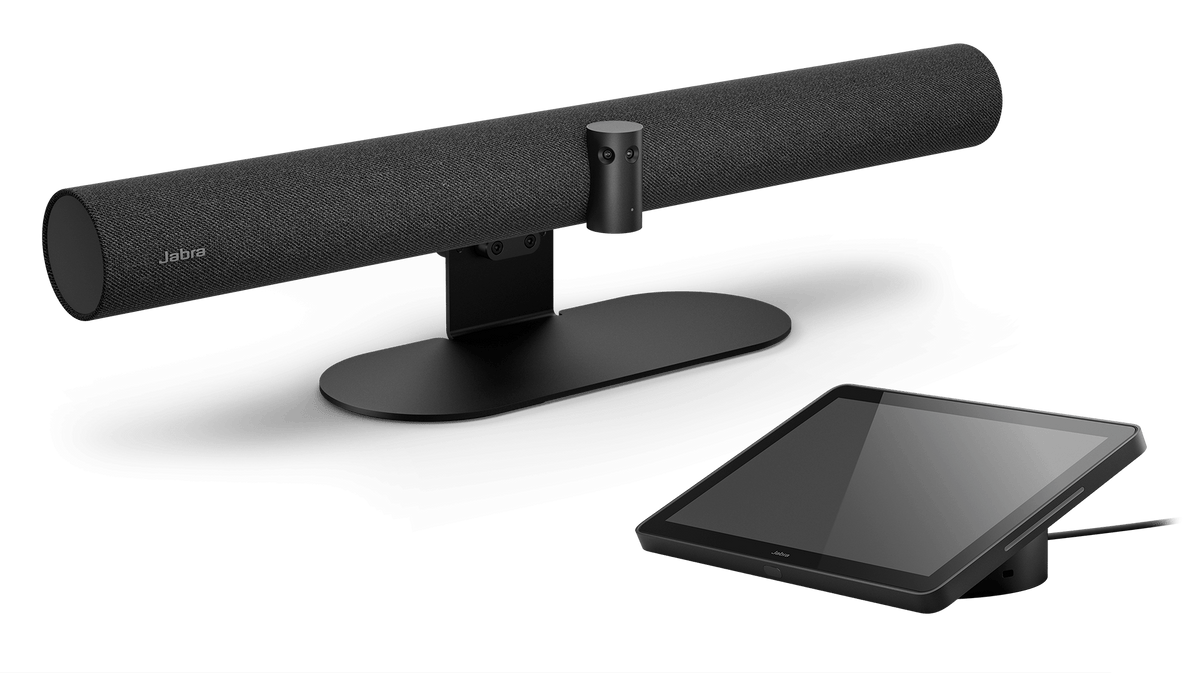

- Tap into an easier meeting experience with the PanaCast Control Touchscreen Tablet
- Certified for the strict requirements for Microsoft Teams Rooms and Zoom Rooms
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
-
Voice
Precision voice detection and full duplex technology use intelligent algorithms to automatically identify and remove residual echo and static noise so everyone can get in on the action without interrupting the conversation flow.
-
Sound

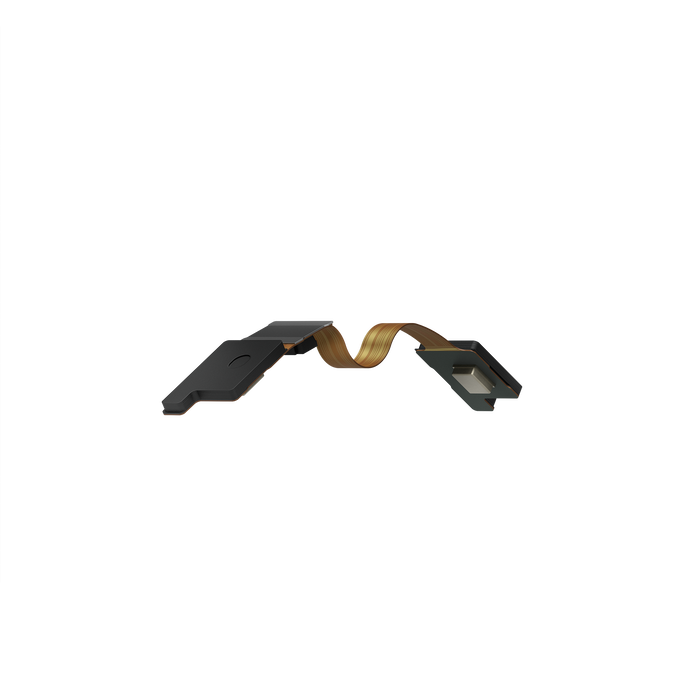

Beamforming 8-mic technology maximises the signal-to-noise ratio so that everyone sounds super sharp.
Technical Specifications
Video
Video
- Number of Cameras: 3
- Field of View: Horizontal: 180Ā°, Vertical: 54Ā°
- Virtual Director: Yes
- Camera Resolution: 13 megapixels
- Resolution: Panoramic-4K: 3840 x 1080 @ 30fps
- Vivid HDR: Yes
- Zoom: Up to 6x lossless digital zoom
- Intelligent Zoom: Yes
Audio
Audio

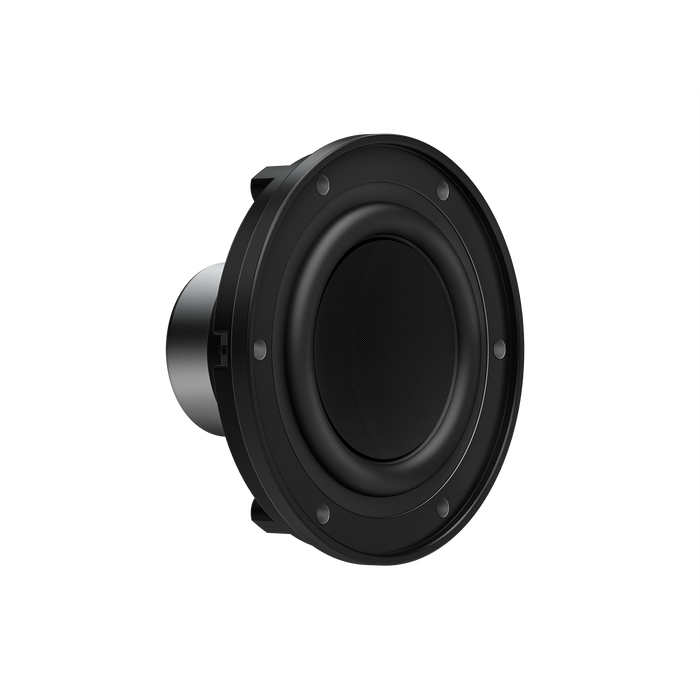

- Speakers: 2 x 2" (50mm) woofers, 2 x 3/4" (20mm) tweeters
- Automatic Speaker Detection: Yes
- Microphone Frequency Range: 100Hz-8kHz
- Speaker Frequency Range: 80Hz-20kHz
- Microphone Type: 8 microphone beamforming array
- Number of Speakers: 4
- Microphone Sensitivity: -37dBFS
Software & Apps
Software & Apps
- System Requirements: Windows 10, compatible with macOS 10.15 and later, including macOS 11.x
- Software Development Kit (SDK): Yes
- Compatible Software and Apps: Jabra Direct, Jabra Sound+, Jabra Xpress
- Whiteboard Sharing: Yes
- Integrated People Count: Yes
Ease of Use
Ease of Use
- Manural Pan-Tilt-Zoom (PTZ): Yes
Connectivity
Connectivity
- Connectivity: USB-A, USB-C, Ethernet (RJ45)
- Bluetooth Low Energy Support: Yes for remote control and Sound+ access
- Supported USB versions: USB 2.0, USB 3.0
- USB Cable Length: 2m | 6.5ft
Extended Info
Extended Info
- Operating Temperature: 5Ā°C to 35Ā°C | 41Ā°F to 95Ā°F
- Storage Temperature: -20Ā°C to 60Ā°C | -4Ā°F to 140Ā°F
General
General

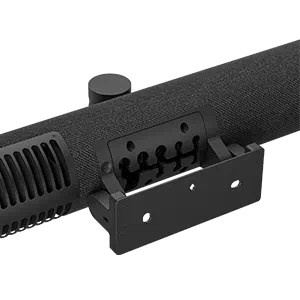

- Box Content: PanaCast 50, power supply, wall mount, USB-C to USB-A cable 2m/6.6ft (USB 3.0)
- Weight: 2200g | 77.6oz
- Packaging Dimensions (WxHxD): 685mm x 167mm x 130mm | 27in x 6.6in x 5.1in
- Warranty: 3 Years
- Main Unit Dimensions (WxHxD): 650mm x 80mm x 125mm | 25.6in x 3.1in x 4.9in
- Certifications and Compliance: Microsoft Teams, Microsoft Teams Rooms (MTR), Zoom Rooms, Zoom
Frequently Asked Questions
Can the Jabra PanaCast 50 Video Bar System be managed remotely?
Can the Jabra PanaCast 50 Video Bar System be managed remotely?
The Jabra PanaCast 50 Video Bar System can be managed remotely over an Ethernet connection using the Web Console. You can access the Web Console by entering the IP address of the video bar or touch controller into a browser.
If this is the first time you are accessing the Web Console, it is necessary to change the username and password. The default username isĀ adminĀ and the password is theĀ last 6 digits of the serial number of the device used to access the Web Console.
If the Jabra PanaCast 50 Video Bar System has not been configured, the Web Console will take you through the necessary configuration process.
How do I configure the Jabra PanaCast 50 Video Bar System?
How do I configure the Jabra PanaCast 50 Video Bar System?
Prerequisite
- Ensure that both the video bar and the touch controller are connected to the same local area network (LAN) and powered on.
When the Jabra PanaCast 50 Video Bar System has been installed and connected, it is ready to be configured.
The setup wizard, which is displayed on the touch controller and the video bar, will guide you through the following steps.
Configure using the touch controller
- Select the language
- Set the date and time
- Pair the touch controller with the video bar (if not pre-paired)
- Update the device firmware
- Select and start the video service provider* (if not pre-selected)
Configure using the video bar
If no touch controller is available, you can configure the PanaCast 50 Video Bar System using the video bar. This method requires the use of either a touch monitor or a wired keyboard and mouse.
- Select the language
- Set the date and time
- Update the device firmware
- Select and start the video service provider* (if not pre-selected)
After configuring the PanaCast 50 Video Bar System, the touch controller will display the video conferencing app of your service provider.
The next step is to configure the video bar settings. You can configure these settings using the touch controller or the Web Console.
*Microsoft Teams Room on Android orĀ Zoom Room for Android
How do I manage the video settings on the Jabra PanaCast 50 Video Bar System?
How do I manage the video settings on the Jabra PanaCast 50 Video Bar System?
Administrators can remotely configure the video conferencing settings directly in the touch controller or using the Web Console.
To access the video conferencing settings using the touch controller, go to theĀ MoreĀ menu in the video conferencing app. SelectĀ Settings,Ā Device settings. In the Jabra PanaCast 50 Video Bar System settings screen, go to theĀ AdminĀ menu and log in as an administrator.
To access the video conferencing settings using the Web Console, enter the IP address of the video bar or touch controller in a browser. The IP address is displayed on the installation screen during the configuration process of the Jabra PanaCast 50 Video Bar System. The IP address is also available in theĀ AboutĀ section of theĀ Device settingsĀ menu on the touch controller.
Video settings include the following:
Camera mode

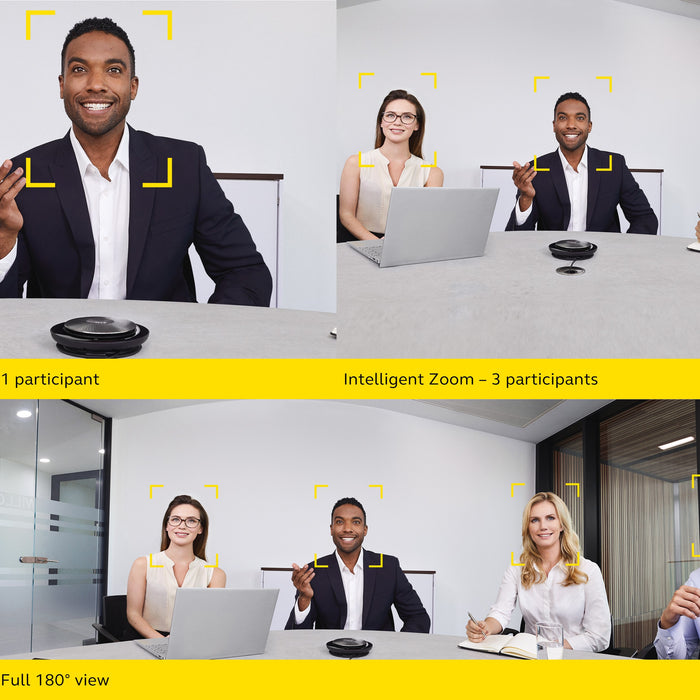

- Intelligent Zoom (default setting)
Dynamically frames all visible people within 6 meters (20 feet). - Virtual Director
Dynamically switches to and focuses on the person who is speaking. - Panoramic View

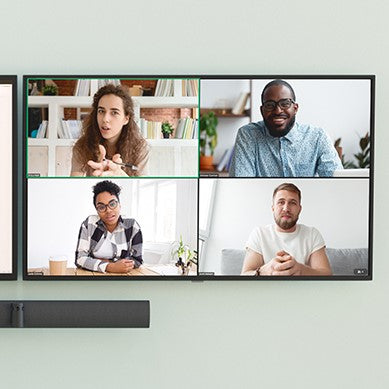

Displays a panoramic view of the meeting room. - Dynamic Composition ā Single Stream (available only for MS Teams Rooms)
Displays up to 4 participants in a meeting room in a tiled view. The tiled view will dynamically update to display the participants who are actively speaking. This option requires a reboot of the device.
Field of view
The angle of the camera can be optically adjusted for a wider or narrower view of the meeting room. The default setting is 180Ā°.
Pan, Tilt, Zoom presetsĀ (available only for Zoom Rooms)
Administrators can adjust and save the camera view using the touch controller. Saved presets do not overwrite the default Pan, Tilt, Zoom settings. Users can select saved presets when a new meeting starts.
Image quality
You can adjust the image for brightness, contrast, saturation, sharpness, and white balance. Adjusting the settings will change the image quality in real time.
You can also enable Vivid HDR and Automatic white balance. If Vivid HDR is enabled, you cannot adjust the contrast, saturation, and sharpness manually. If Automatic white balance is enabled, you cannot adjust the white balance manually.
Video flicker
Video flicker can occur if the video bar is not set to the correct Region frequency for your geographic region.
To prevent video flicker, select Auto 50Hz/60Hz (the default setting) for regions that support NTSC format, or 50Hz for regions that support PAL format.
Which operating system does the Jabra PanaCast 50 Video Bar System run on?
Which operating system does the Jabra PanaCast 50 Video Bar System run on?
The Jabra PanaCast 50 Video Bar System operates on Android.

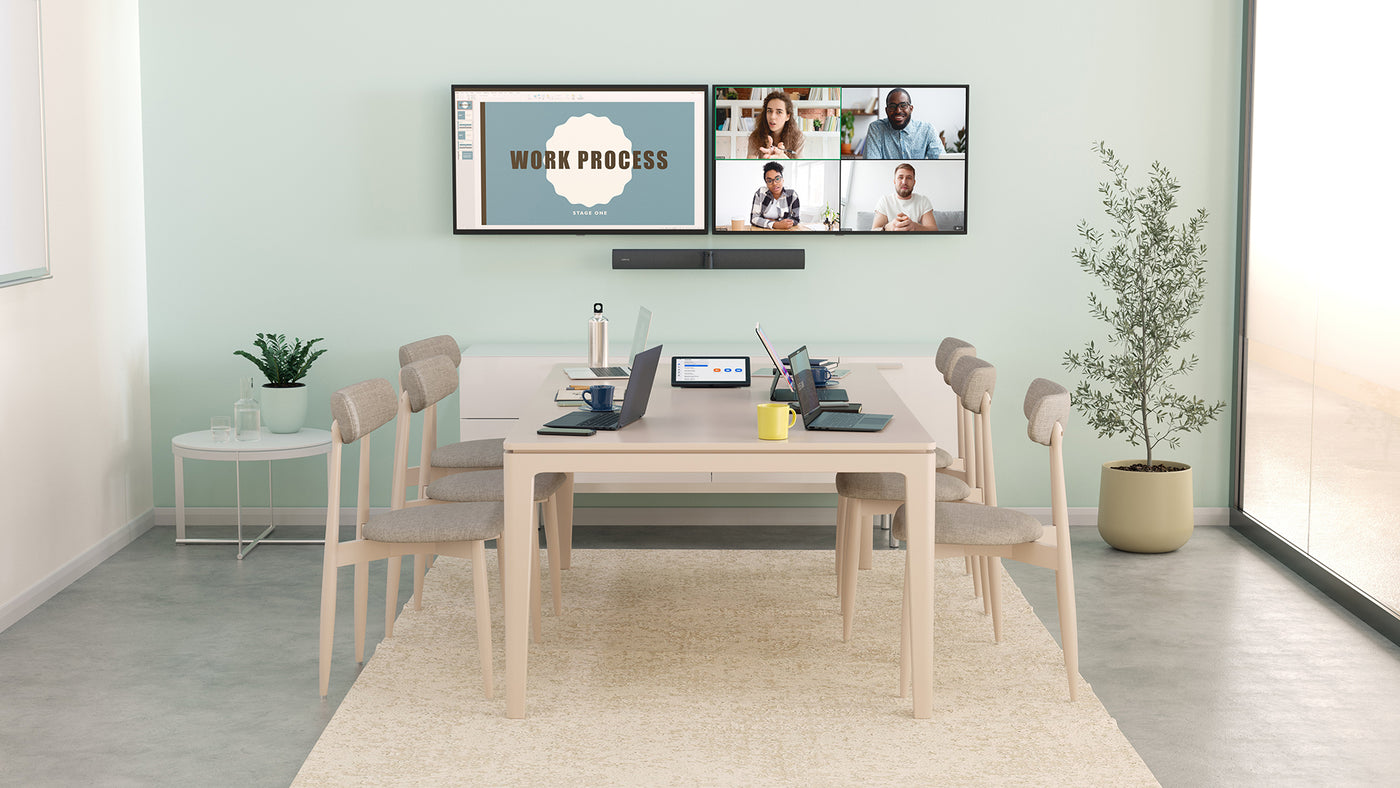

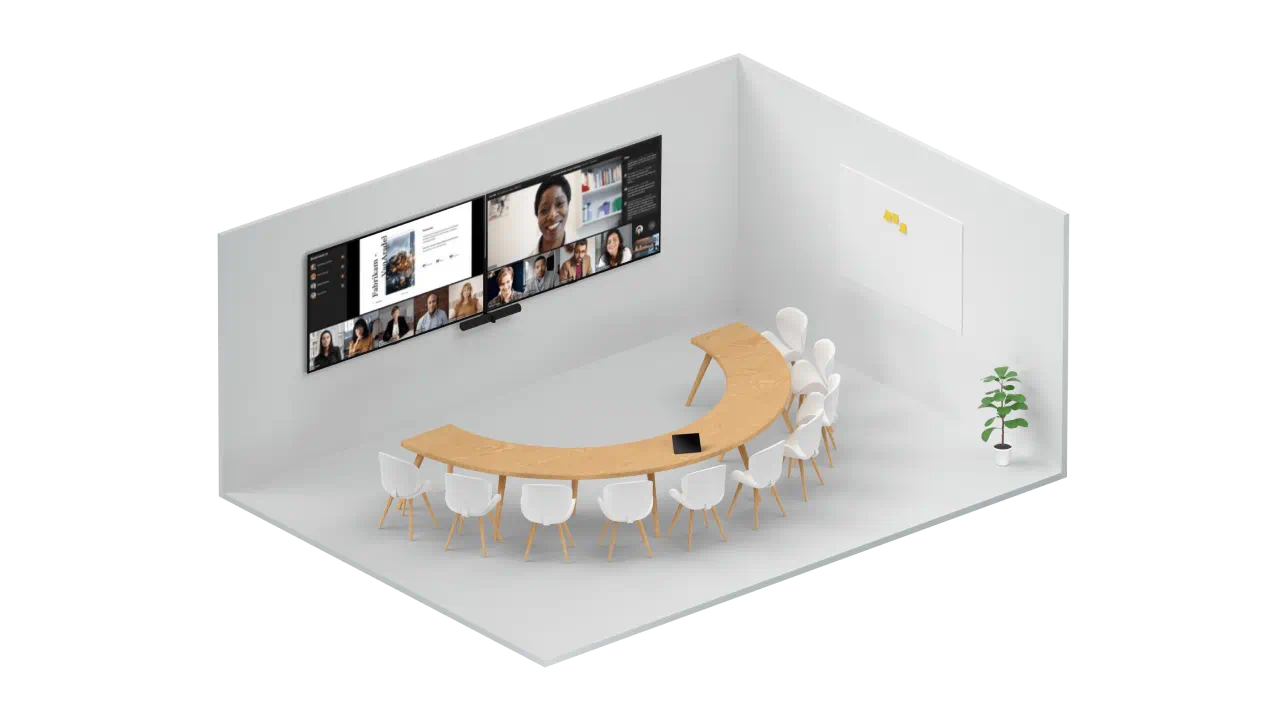

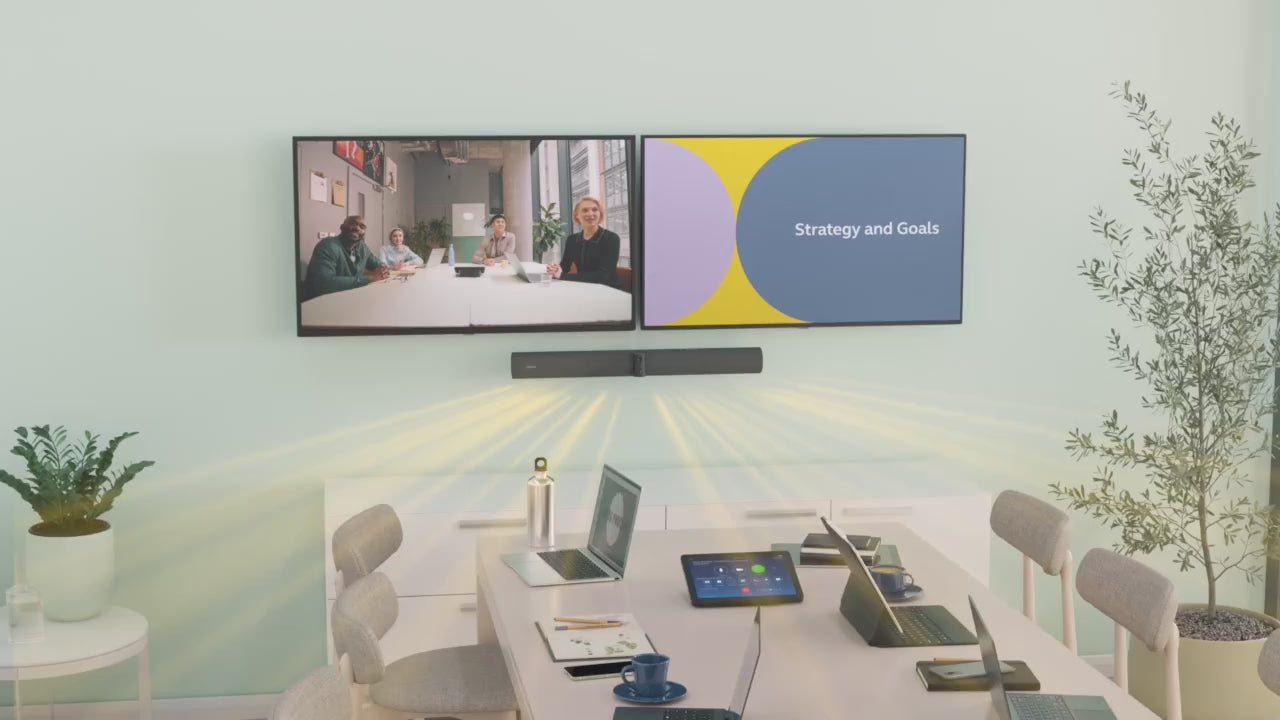

What is a typical room setup for the Jabra PanaCast 50 Video Bar System?
What is a typical room setup for the Jabra PanaCast 50 Video Bar System?
The Jabra PanaCast 50 Video Bar System is designed for meeting rooms that measure up to 4.5 meters x 6 meters (15 feet x 20 feet).
